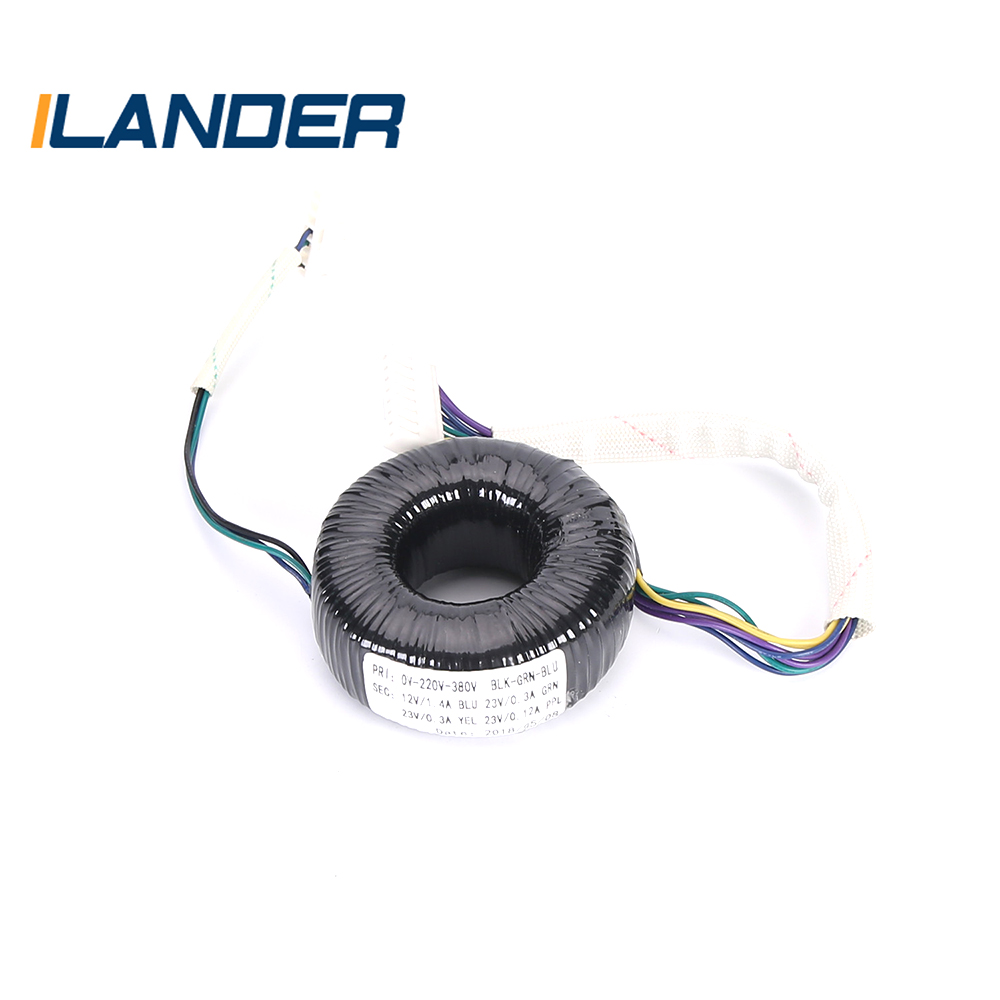

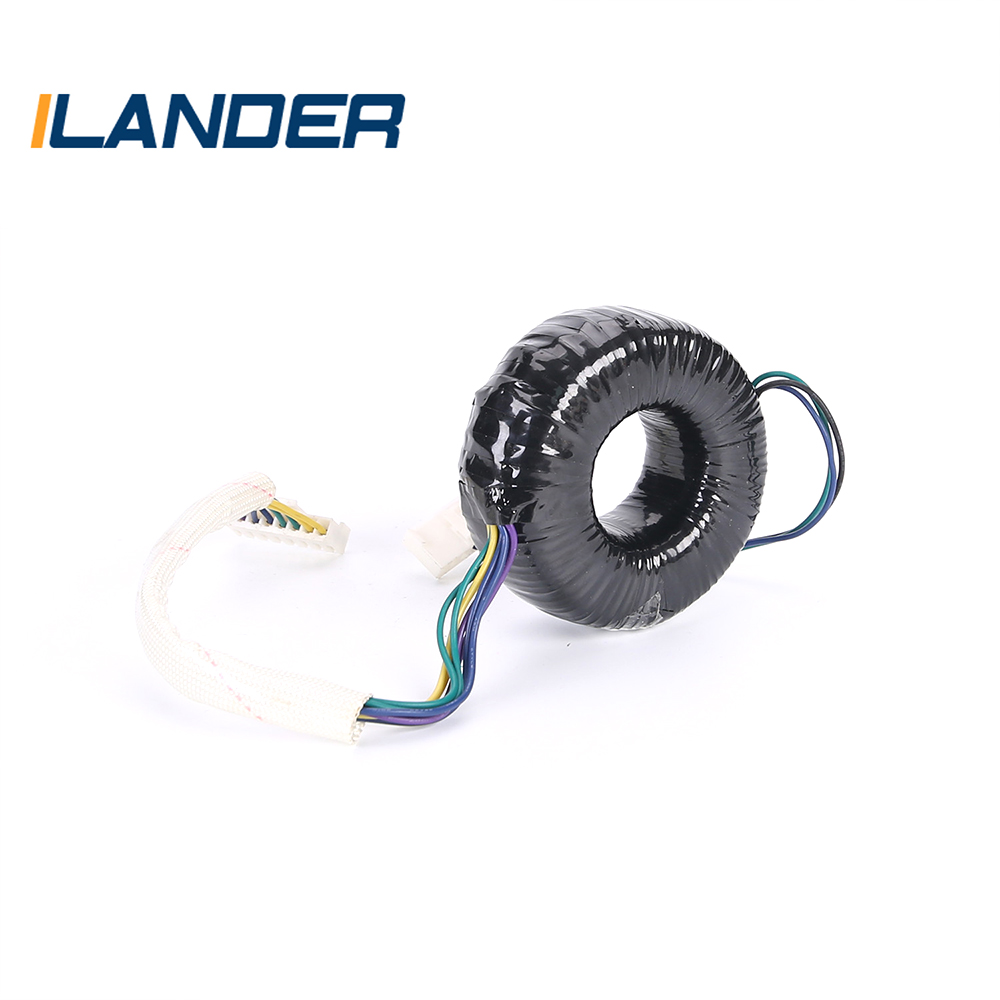

Toroidal Transformer OD30VA Electronic Transformer Iron Core
  • Toroidal Transformer OD30VA Electronic Transformer Iron Core details
  • Toroidal Transformer OD30VA Electronic Transformer Iron Core details

Toroidal Transformer OD30VA Electronic Transformer Iron Core

A toroidal transformer is a toroidal core structure with windings arranged in a multi-turn cylindrical arrangement. Characteristics: multi-turn winding, small size. It is suitable for large current transmission in power systems and is one of the commonly used equipment in transmission lines and substations. Working principle: When alternating current passes through the coil, an induced electromotive force will be generated. When the voltages at both ends of the coil are equal, the generated electromotive force will be the largest; otherwise, the electromotive force will be the smallest.

QUOTE NOW
PREV：No previous productNEXT：Toroidal Transformer OD70VA Power Supply

PRODUCT DESCRIPTION

Toroidal Transformer

Class: Power Transformer

Structure Classification: Toroidal Iron-core Transformer

Sort by Phase Number: Single Phase Transformer

Input Voltage: 110V, 220V, 380V (customizable)

Output Voltage: 6V-220V (customizable)

Frequency: 50Hz/60Hz

Insulation Class: Class E-B-F-H

Features and Advantages:

Lower radiation field

Higher efficiency

Lower temperature

Easily installed

Short production cycle

Low noise

Application Areas:

Industrial control, audio equipment, signal devices, office equipment, communication equipment, instrumentation, testing equipment and medical equipment, etc.

lron-core

Capacity (VA)

Boundary Dimension

Installation Dimension

on-core

pacy

HxΦ(mm)

axb(mm)

H-100

100VA

55*98

80*80

H-200

200VA

60*110

06*06

H-300

300VA

70*120

105*105

H-400

400VA

75*130

105*105

H-500

500VA

80*135

115*115

H-600

600VA

82*147

120*120

H-700

700VA

85*150

125*125

H-800

800VA

90*145

130*130

H-1000

1000VA

95*155

135*135

These parameters above are only for reference.Please refer to the technical drawings for detailed parameters.
If the secondary of the transformer is duplex winding or multiple winding,please inform the voltage and current of each group to calculate the power.

Since 1995

Zhejiang Ilander Electric Co., Ltd.

Zhejiang Ilander Electric Co., Ltd.is a professional manufacturer of power transformers and electronic transformers, located in Pinghu, Jiaxing, adjacent to the prosperous city-Shanghai, in China.
Since 1995, our experienced R&D department has always been committed to finding the best solution for each project, which is based on the needs of customers and combined with necessary commercial considerations.
Our products are widely used in power transmission and distribution engineering, power distribution room, household appliances, traffic lights, sanitary ware, elevator, electric welding machine, mechanical equipment, electrical test bench, medical instruments, communication, audio, car charging pile, charger, inverter and other fields.

company advantage

Advantage：
-About 30 years experience in transformer
-Free design and sample service
-Best quality、fast delivery and competitive price
-The latest technology、professional designers and skilled workers
-Automation equipment and production line
-Annual output more than 20 million pieces

faqto solve your doubt

  • Are you manufacturer?

  • What's the payment term?

  • What about the delivery time?

  • Can you provide OEM or ODM?

  • Can you produce according to our samples?

  • What's your sample's policy?

Get A Quote Now

Recommended Products:

NEWS CENTER

Industry knowledge

A toroidal transformer is a type of electrical transformer that is shaped like a torus (a doughnut-shaped ring). It is constructed by winding the primary and secondary coils around a ring-shaped core, made of a magnetic material such as iron, nickel, or cobalt.
The following are some of the key characteristics of toroidal transformers:
Shape: Toroidal transformers are shaped like a torus (doughnut-shaped ring), with the primary and secondary coils wound around a magnetic core.
Size: Toroidal transformers are smaller in size compared to traditional transformers of the same power rating, making them more compact and easier to install.
Weight: Toroidal transformers are lighter than traditional transformers, making them easier to transport and install.
Efficiency: Toroidal transformers have a more uniform magnetic field, which results in less energy being lost as heat, making them more efficient than traditional transformers.
Electromagnetic interference (EMI): Toroidal transformers generate less EMI compared to traditional transformers, which can cause interference with other electrical devices.
Reliability: Toroidal transformers are less prone to failure compared to traditional transformers, as they have no air gaps and no structural seams, which can be potential sources of failure.
Cost: Toroidal transformers are generally more expensive than traditional transformers, due to the increased cost of materials and manufacturing process.
Magnetic material: Toroidal transformers use a magnetic material, such as iron, nickel, or cobalt, for their cores. The choice of magnetic material can affect the performance and efficiency of the transformer.
Winding method: Toroidal transformers are wound using a helical winding method, which results in a more uniform magnetic field compared to traditional transformers.
Overall, toroidal transformers offer several advantages over traditional transformers, including higher efficiency, smaller size, lower weight, lower EMI, and improved reliability. These characteristics make toroidal transformers an attractive choice for a wide range of applications.

If you are interested in our Toroidal Transformer OD30VA Electronic Transformer Iron Core or have any questions, please consult us.
