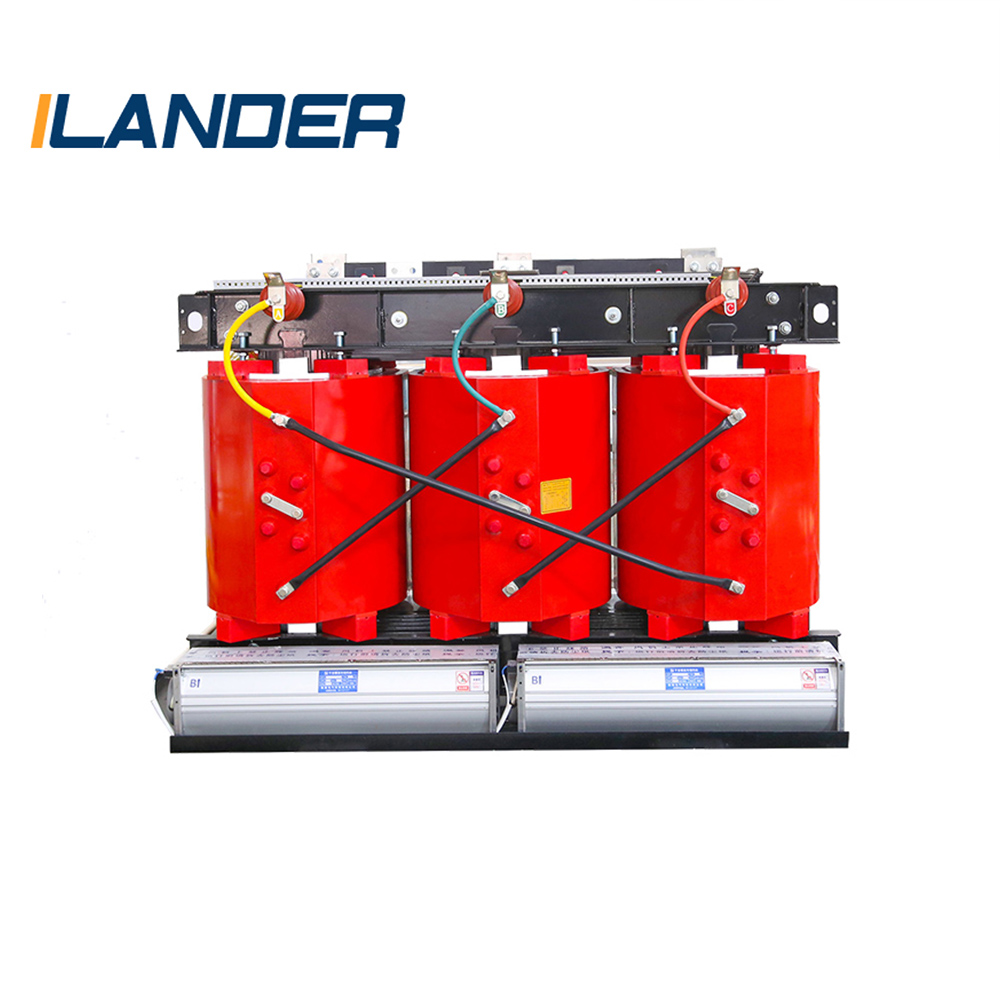

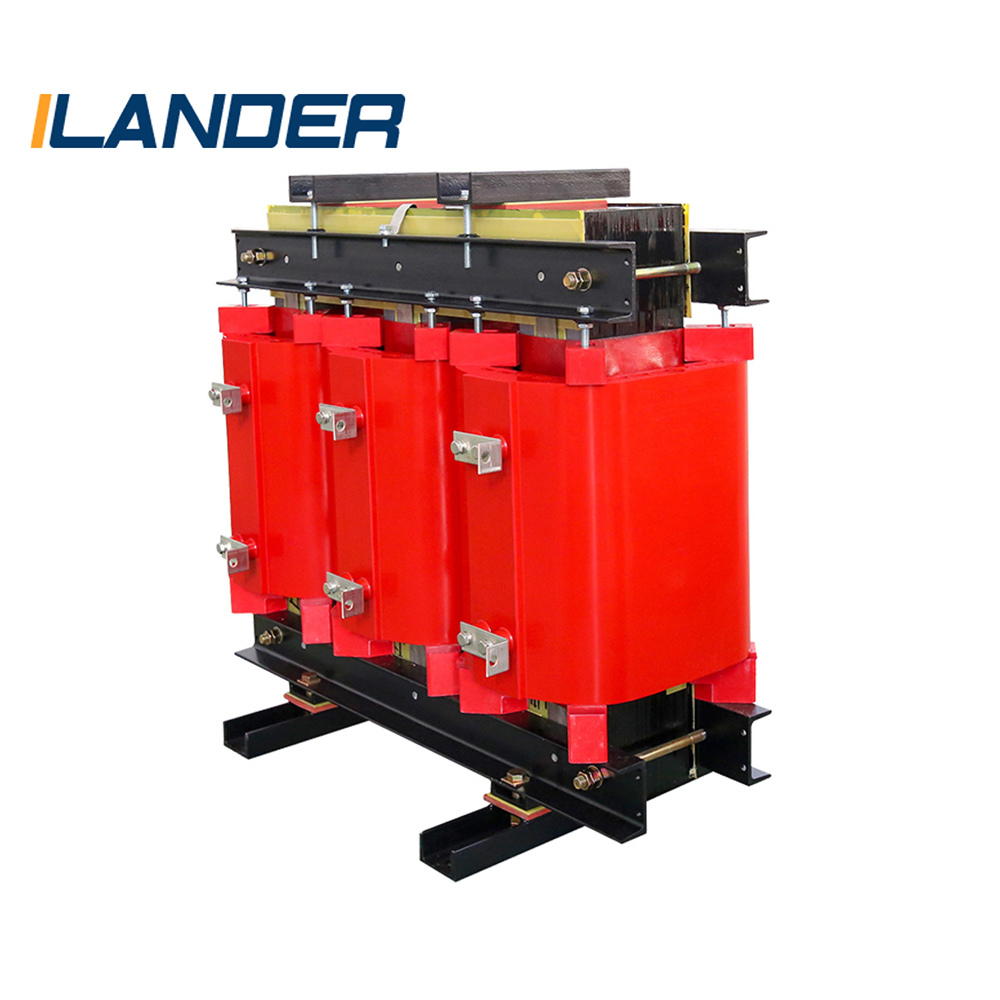

Power Supply Distribution Voltage Transformer 10kv 35kv

Simply put, a dry-type transformer refers to a transformer whose iron core and windings are not immersed in insulating oil. It is mainly composed of a silicon steel sheet iron core and epoxy resin cast coils. An insulating cylinder is placed between the high and low voltage coils to increase electrical insulation.The coil is supported and restrained by the spacer, and the fasteners lapped by its parts have anti-loosening performance.

QUOTE NOW

PRODUCT DESCRIPTION

Power Transformer
Classification: Power Transformer
Type: Dry-type Transformer
Winding: High-voltage Coil, Low-voltage Coil
Frequency: 50Hz/60Hz
Insulation Class: F-H Class

Features and Advantages:
Good overall rigidity
High mechanical strength
Strong ability to resist sudden short circuits
Shock absorption and high impact performance

Application Areas:
Local lighting, high-rise buildings, airports, terminal CNC machinery and equipment, etc.

SCB-10

Technical Data of 10kV Class SC(B)-10-30~2500/10 Transformer
Model	Po	PK	Uk	lo	LpA	Gt	Size										Low Voltage Terminal
Model	W	120°C	%	%	dB	Kg	a	b	c	d1*d2	e	f	g	h	K1	K2	Low Voltage Terminal
SC10-30/10	190	710	4	2	54	230	680	450	672	300*400	767	552	187	299	210	110	a
SC10-50/10	270	1000		2	56	310	710	450	712	400*400	807	592	192	304	220	115	a
SC10-80/10	370	1380		1.5	56	450	740	600	737	400*550	822	607	196	308	230	120	a
SC10-100/10	400	1570		1.5	56	510	760	720	817	400*660	902	677	200	312	245	125	a
SC10-125/10	470	1850		1.3	58	590	780	720	842	550*660	917	692	202	324	255	130	a
SC10-160/10	540	2130		1.3	58	680	840	720	886	550*660	932	707	205	327	285	140	a
SC10-200/10	620	2530		1.1	59	780	900	720	962	550*660	962	882	245	338	305	155	b
SC10-250/10	720	2760		1.1	59	910	950	720	987	550*660	982	907	247	340	315	160	b
SCB10-315/10	880	3470		1	60	1040	990	780	1133	660*720	1133	1033	250	343	325	165	b
SCB10-400/10	980	3990	6	1	60	1210	1020	780	1197	660*720	1182	1097	284	353	340	175	c
SCB10-500/10	1160	4880		1	62	1400	1050	780	1272	660*720	1252	1162	311	369	350	180	c
SCB10-630/10	1340	5880		0.85	62	1580	1170	830	1307	820*770	1287	1192	314	386	360	185	d
SCB10-630/10	1300	5960		0.85	62	1620	1200	830	1230	820*770	1222	1120	310	395	390	200	d
SCB10-800/10	1520	6960		0.85	64	1860	1260	830	1295	820*770	1285	1185	321	400	415	210	e
SCB10-1000/10	1770	8130		0.85	64	2240	1310	880	1447	820*820	1427	1317	326	405	445	225	e
SCB10-1250/10	2090	9690		0.85	64	2560	1350	880	1592	820*820	1572	1462	333	410	455	230	g
SCB10-1600/10	2450	11730		0.85	66	3090	1400	880	1652	820*820	1642	1524	348	415	465	235	h
SCB10-2000/10	3050	14450		0.7	66	3660	1520	1020	1822	820*960	1812	1692	360	441	510	260	i
SCB10-2500/10	3600	17170		0.7	66	4420	1580	1020	1942	820*960	1932	1792	369	453	525	270	j

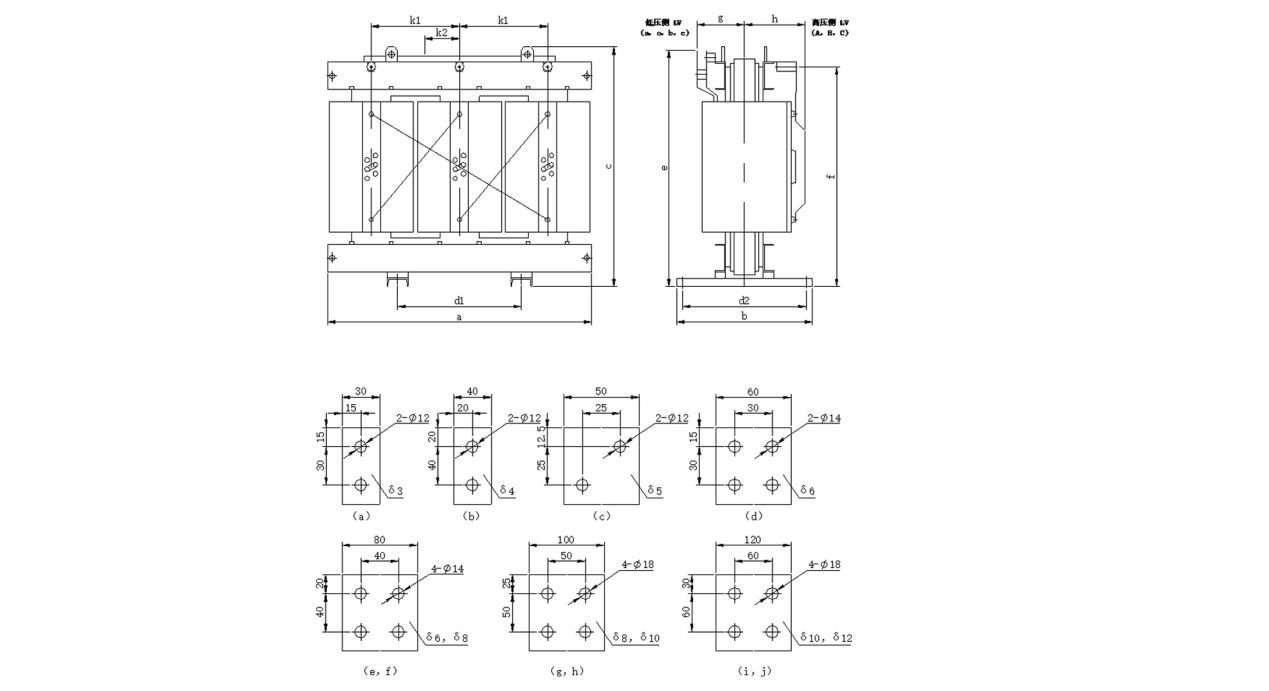

The outline size and weight listed in the above table are for the reference of design selection only, and the final dimensions are based on the outline diagram.
